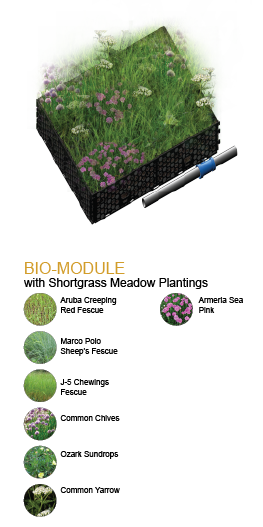

SYSTEM OVERVIEW: Bio-Module Shortgrass
When it comes to performance, Bio-Module stands out as Best in Class.
Bio-Module with Shortgrass Meadow plantings boasts the highest storm-water retention capability in the industry, holding a whopping 70 Liters per Square Meter (+1.5 US gallons per square foot). Combined with a shed rate of 38 centimeters per hour (15 inches per hour) for excess water, Bio-Module is head and shoulders above the competition. This is the kind of storm water performance civil engineers can count on to handle 100 year rain events in many North American cities.
This incredible moisture retention capability allows the use of meadow plantings for maximum cooling benefits. Since grasses and wildflowers have higher transpiration rates than succulent plantings like sedum, cooling the roof is brought to levels previously assumed were unachievable.
...and all this weighs around 145 kilograms per square meter (30 pounds per square foot).
Bio-Module with Shortgrass Meadow plantings boasts the highest storm-water retention capability in the industry, holding a whopping 70 Liters per Square Meter (+1.5 US gallons per square foot). Combined with a shed rate of 38 centimeters per hour (15 inches per hour) for excess water, Bio-Module is head and shoulders above the competition. This is the kind of storm water performance civil engineers can count on to handle 100 year rain events in many North American cities.
This incredible moisture retention capability allows the use of meadow plantings for maximum cooling benefits. Since grasses and wildflowers have higher transpiration rates than succulent plantings like sedum, cooling the roof is brought to levels previously assumed were unachievable.
...and all this weighs around 145 kilograms per square meter (30 pounds per square foot).
STANDARD FEATURES AND OPTIONS:
- Double, positive locking sidewalls
- Pre-plumbed, quick-connect irrigation options fully integrated and protected
- Perforated sidewalls for soil to soil contact for the entire depth of the growth media
- Built-in filter fabric separating the drainage layer from the growth media
- Edging which allows uninterrupted drainage while sealing the sidewall from erosion
- Paver Hold-Down System attaches all the modules for a seamless wind uplift solution
- Modules come pre-vegetated with the option of shortgrass meadow species or desert succulent sedum species
- Our Modular Vegetated Roof System is now FM Approved in accordance with FM 4477.

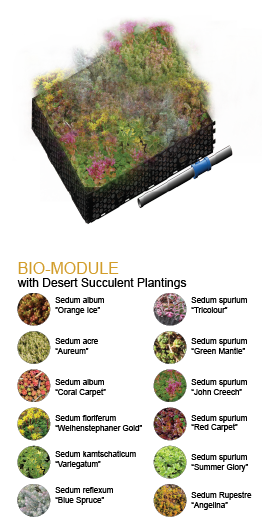

SYSTEM OVERVIEW: Bio-Module Sedum
If you are looking for a modular option according to the German Landscape Association’s (Forschungsgesellschaft Landschaftsentwicklung Landschaftsbau aka. “FLL”) guidelines, look no further than Bio-Module with Desert Succulent Sedum plantings.
With FLL compliant growth media and the use of hardy, drought resistant, C4-CAM plants such as sedum, you can expect a long-lasting, low maintenance green roof when you use Bio-Module with Desert Succulents.
Combining the low-care features unique to Bio-Modules with the standard features and options of all Bioroof Modules, creates an unbeatable value others cannot match up to.
With FLL compliant growth media and the use of hardy, drought resistant, C4-CAM plants such as sedum, you can expect a long-lasting, low maintenance green roof when you use Bio-Module with Desert Succulents.
Combining the low-care features unique to Bio-Modules with the standard features and options of all Bioroof Modules, creates an unbeatable value others cannot match up to.
